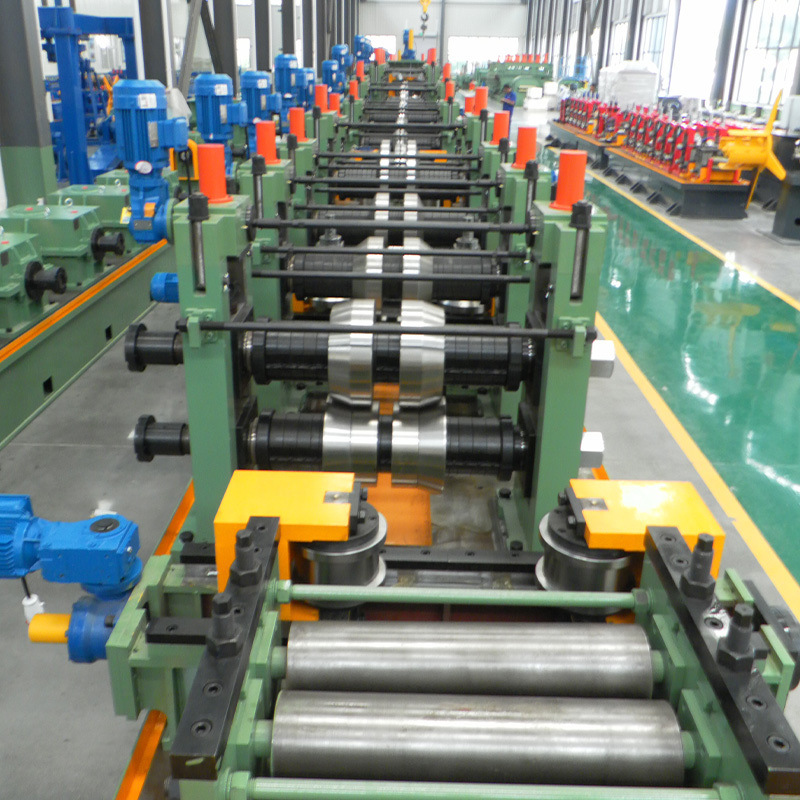

Full Automatic Pipe Mill Machine 10-50mm Diameter 90m/min
Product Specifications
| Attribute |
Value |
| Pipe Diameter |
10-50mm |
| Product Speed |
Max 90m/min |
| Material Compatibility |
Steel pipe, stainless pipe |
| Customization |
Can be designed according to customer requirements |
Technical Parameters
- Material: HRC, CRC
- Motor Type: Servo Motor
- Cutting Speed: Max 30m/min
- Warranty: 1 Year
- Round Pipe Size: 400x400mm
- Thickness: 10.0-16.0mm
- Cutting Accuracy: ≤±2mm
- Square Pipe Size: 200*200 - 400*400mm
540 Computer Flying Saw Parameters
- Cutting Length: 0.5-32m tunable
- Cutting Precision: ±3mm
- Max Cutting Frequency: 10 cuttings per min
- Max Speed: 50m/min
- Max Thickness of Pipes: 16mm
- Saw Head Action: Hydraulic Drive (Flat-pushing Manipulation)
- Pipe Clamp: Hydraulic Clamping
Cold Cutting Saw Features
- Automated sawing tubes inline/offline with high production
- High Speed Steel or Carbide Tipped Blades
- YASKAWA/SIEMENS servo motor & premium brand electric components
- Compatible with various tube profiles
- Eliminates secondary chamfering or de-burring
- Works with Carbon Steels, Stainless Steels, HSLA
- High speed and precision cutting with excellent edge quality
Buyer Requirements
- Workshop: 70x8m, H＞5m (crane to ground)
- Power: Approx.500KW 380V/50Hz/3phases
- Circulation Cooling Water: Flow:20T/h～30 T/h, Pool Volume:30m³
- Compressed Air: Flow:5m³/min, Pressure: 5-7kg/cm²
- Cable: All cables outside of machine to be supplied by buyer
Note: The data in the form is for reference according to general ranges. We design and manufacture each line according to specific customer requirements, ensuring each customer receives a customized Cold Saw solution.
Our Services
Engineer dispatch for installation and operator training
One year quality guarantee with lifetime repair support
Pre-sale services including workshop and production output design
After-sale services including installation, training, and technical support
Option for extended engineer support (months to 1 year) for production optimization
Complete project design for stainless/carbon steel pipe production
Responsible for loading and shipping arrangements
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
