Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter

Name: Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

جزئیات محصول:

محل منبع:	هبی ، چین
نام تجاری:	Tengtian
گواهی:	CE, ISO9001, BV
شماره مدل:	HG60

اطلاعات دقیق

محل منبع:

هبی ، چین

نام تجاری:

Tengtian

گواهی:

CE, ISO9001, BV

شماره مدل:

HG60

نام محصول:

فولاد کربن اتوماتیک دستگاه آسیاب قطر 21-63 میلی متر

مادی:

فولاد کربن ، استیل ضد زنگ ، فولاد آلیاژ کم

قطر لوله:

21 - 63mm

سرعت محصول:

حداکثر 50 متر در دقیقه

MAX.Thickness برای لوله مربع:

0.8-3.0mm

certification:

CE ISO

چرخ دنده کرم:

حداکثر 80 متر در دقیقه

کلمه کلیدی:

دستگاه لوله سازی فولاد کربنی با قطر 21-63 میلی متر

برجسته کردن:

High Light

برجسته کردن:

automatic carbon steel tube mill,tube mill machine 21-63mm diameter,carbon steel tube mill machine

tube mill machine 21-63mm diameter

carbon steel tube mill machine

اطلاعات تجاری

مقدار حداقل تعداد سفارش:

1 ست

قیمت:

$100000 to $1 million

جزئیات بسته بندی:

صادرات ضد آب و بسته بندی دریا.

زمان تحویل:

3.5 ماه

شرایط پرداخت:

L/C ، T/T ، Western Union

قابلیت ارائه:

70 ست در سال

توضیح محصول

Automatic Carbon Steel 21-63mm Diameter Tube Mill Machine

Product Attributes

Material	Carbon steel, Stainless steel, Low alloy steel
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max.Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Worm Gearing	Max.80m/min

Product Description

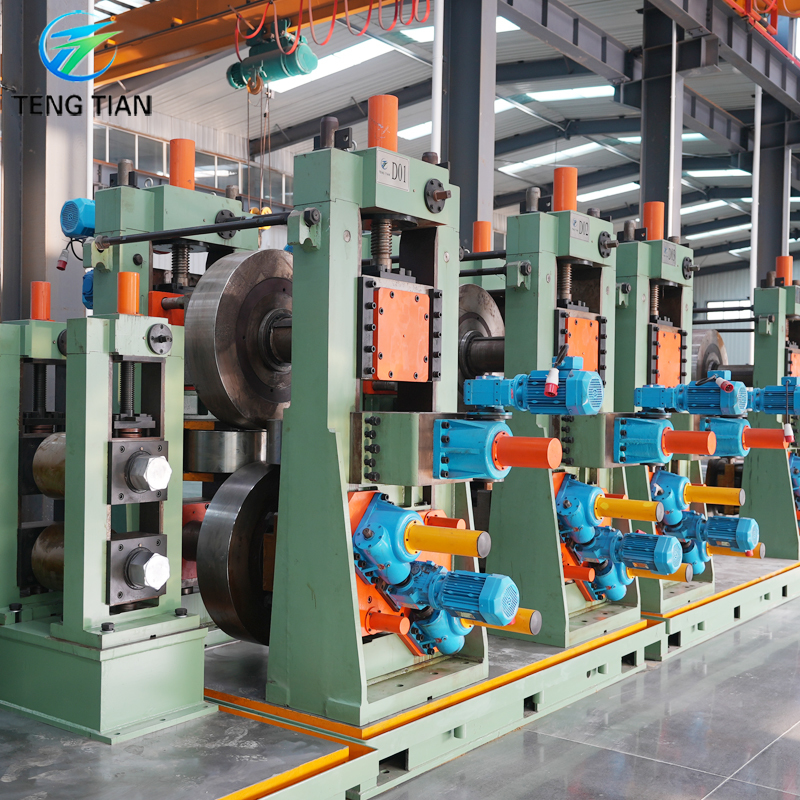

High-frequency pipe welded machinery is the special equipment to produce welded pipe of low carbon steel or low alloy steel material. The process involves feeding steel belt into the machinery, turning it into tube by forming roller, then using high-frequency proximity effect and skin effect to reach welding temperature. The welding is completed under squeezing roller extrusion, then through cooling, sizing and straightening to get the required steel pipe.

Technical Process

Uncoiler
Straightening end
Pipe straightener
Shear & Welder
Storage
Forming, H.F. welding
Sizing mill
Flying saw
Pipe straightener used for original pipe
Flatter
Hydraulic or scateless test equipment
Roller conveyor and conveyor table
Packing device
Electric control system

Specifications

Model	Diameter(mm)	Thickness(mm)	Speed(m/min)	Main power(kw)	HF welder(KW)	Area(m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Product Gallery

Frequently Asked Questions

Q1: Are you manufacturer or trading company?

A1: We are manufacturer with more than 20 years experience.

Q2: What is the max size of pipe you have ever produced?

A2: Maximum φ630mm

Q3: Can I visit your customer machine line?

A3: Yes, but we need to get agreement from our customer first.

Q4: What is your machine advantages?

A4: Full automatic, Direct forming square, Share rollers, Fast change system

Q5: How I can get the quotation?

A5: Please send your requirements of pipe size and thickness to us.
